Description

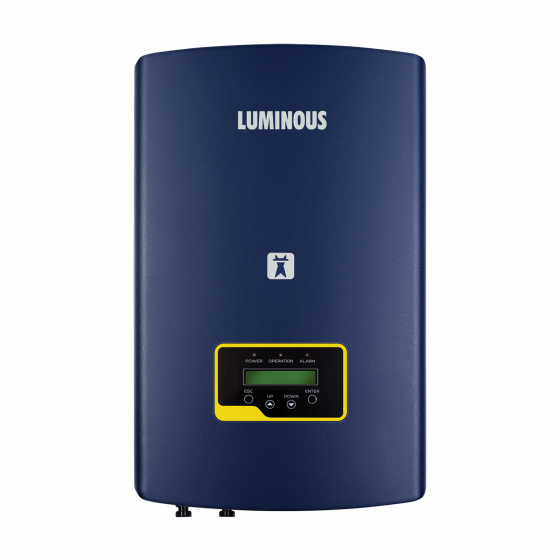

Luminous grid-tie systems are reliable, safe and efficient solutions to use solar power to run your loads and feed excess power directly to the grid, thereby reducing your electrical bills or diesel consumption.
| Features | Benefits |
| Transform less design | High efficiency> 97% |
| Dual/Quad MPPT Charge controllers | Complete utilization of PV arrays even in partial shading. |
| Wide operating voltage | Extends the day utilization for harnessing maximum power. |
| IP 65 enclosure | Completely dust and waterproof so can be installed outside. |
| Wi-Fi communication | For efficient remote monitoring. |
| Compliance with IEC standards IEC 617274.61000 | Safe, reliable, and approved for Govt. subsidies |
| Anti-Islanding Disconnects from the grid if the grid goes down. | Ensures safety of line workers. |
| Net Weight (Kg) | Inverter – 37 kg, Panel – 20 kg |
| Listing Description | Phase: Single Phase
UPS: NXi 130 PV Panel: 325 Wp x 10 No.s |
| Technology (Solar) | Without Battery |
| Warranty | Inverter warranty – 1 years |
| Wattage (Wp) | 325 |
| Panel Type | PolyCrystalline |
| Free Of Cost (in months) | 60 |
| Product Dimensions (L*W*H) | Dimensions in mm: UPS-“ 339*565*172, Panel -“ 1976x991x40 |
| DC input Range (V) | 60-130 |
| Max. supported panel power (Wp) | 270 |
| Rated AC power (W) | 230V, 8.6A, Single phase |
| Usable current from grid (A) | 24 |
| Max Solar Panel Voltage (V) | 37.39 |
| Nominal DC | 48 |
